Plus current series
Home > Products > Plus current series
Execution standard: SYJ36—89 SY/T0036-2000

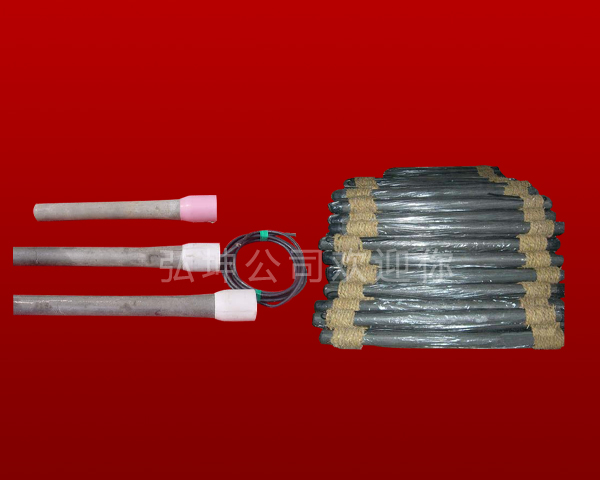

Main application: High silicon cast iron anodes are widely used in maritime oil drilling platform, underground pipelines, underground cable and other facilities of the impressed current cathodic protection.
Chemical composition
| Of the goods | Of the goods | Impurity content | |||||
| Si | Cr | Mn | C | Fe | P | S | |
| High silicon cast iron | 14-16 | - | 0.6-0.8 | 0.8-1.05 | allowance | ≤0.25 | ≤0.1 |
| Chromium ferrosilicon | 14-16 | 4.0-4.5 | 0.6-0.8 | 0.8-1.05 | allowance | ≤0.25 | ≤0.1 |
size
| model | specification(mm) | Weight (kg) | anode with cable | |
| mm Cross section | mm | |||
| YGT-I | Ф50×1500 | 22 | 25 | 1000 |
| YGT-II | Ф75×1200 | 40 | 25 | 1000 |
| YGT-III | Ф75×1500 | 50 | 25 | 1000 |
| YGT-IV | Ф100×1500 | 90 | 25 | 1000 |
Overall dimensions and specifications according to user requirements and production
