Cathodic protection package series
Home > Products > Cathodic protection package series

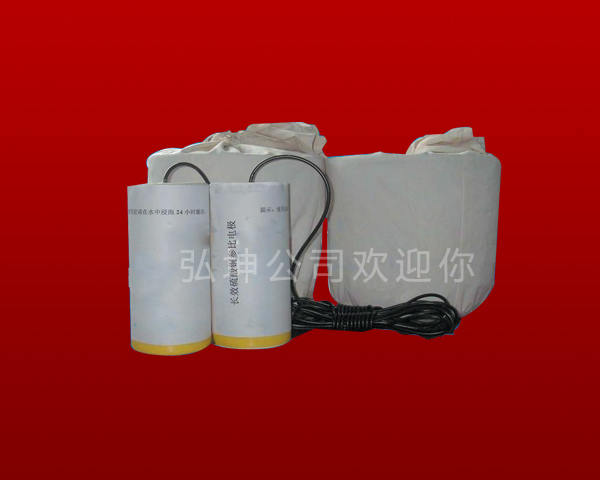

Long-acting copper sulfate reference electrode Uses: mainly used for sacrificial anode cathodic protection of the potential measurement; in the external current cathodic protection system, for automatic control of the stable signal source for buried pipes and underground metal structures cathodic protection works.
Reference electrode type and specification
| Material | model | shape | life | Applicable environment |
| Copper / saturated copper sulfate | CCT | Cylindrical | After the addition of copper sulfate continue to apply | Portable, for field measurement in water and soil |
| MCT-I | Cans | >5 | Used in soil medium | |
| MCT-II | Cans | >10 | Buried with long life electrodes |
The Main Technical Index of Saturated Copper Sulfate Reference Electrode
| Critical current density | +30-10uA/cm2 |
| Potential accuracy | ≤±10mV |
| Electrode design life | >10year |
| Open circuit potential | +316mV(vs,SHE) |
