Plus current series
Home > Products > Plus current series

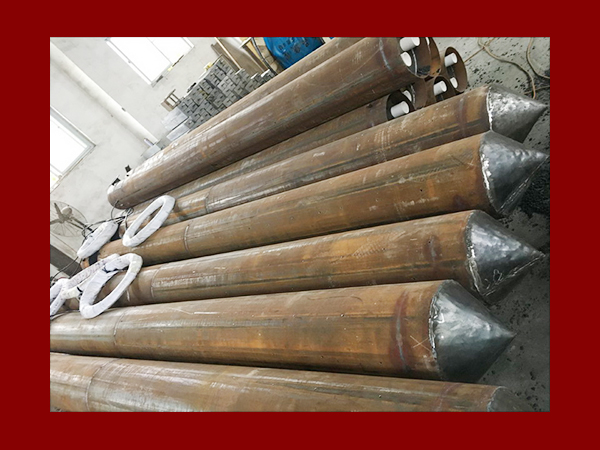

The main purpose: deep well anode for large long-distance pipeline, urban pipe network, hydropower projects, the surface soil resistivity of the buried metal structure of the cathodic protection. Is one of the main technologies of long-distance pipeline, urban pipe network and regional protection.
★ deep well anode refers to the top of the anode body from the ground ≥ 15m of the anode bed, is relatively shallow buried anode.
■ Structural features:
★ deep well anode system consists of deep well anode body, deep well anode, internal airway device, filler, cable, well protection device and other structures.
★ deep well anode according to the requirements can be used precious metal oxide anode, high quality silicon cast iron anode.
★ Precious metal oxide anode
☆ Precious metal oxide anode is a titanium-based + iridium, platinum and other precious metal oxide coating of the new anode.
■ Model specifications:
| model | Precious metal oxide anode (mm) | High-quality high-silicon cast iron anode (mm) | Anode body size(mm) | Number of built-in anodes(root) | Remarks |
| SDSG-1 | ¢25×1000 | / | ¢273×6000 | 3 | Table data for reference only, according to user requirements design, production |
| SDSG-2 | / | ¢100×1500 | ¢159×2150 | 1 |
